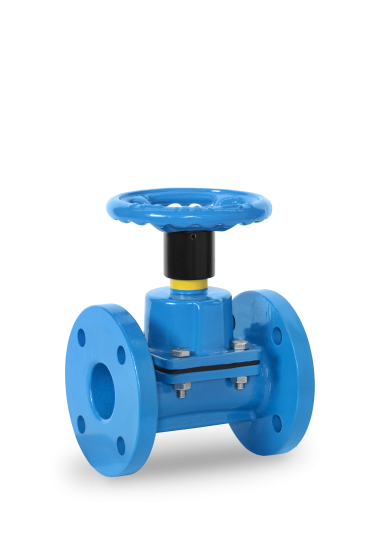

Diaphragm valves Series 85

The Series 85 diaphragm valves ensures full watertightness in the closed state and outwards. The valve can be used in any position and is also characterized by its simple mechanism and easy maintenance. The top flange according to ISO 5211 allows the connection of various types of actuators such as electric, pneumatic, hydraulic. Also suitable for working in vacuum environments.

  • NOMINAL SIZE:
    DN15 – DN300
  • WORKING PRESSURE:
    10 bar
  • FLANGE CONNECTION: :
    PN10 / PN16 / Class 150
  • WORKING TEMPERATURE:
    -25°C / +125°C
  • WORKING MEDIA:
    Potable and waste water, seawater - desalination, food processing, mining sludge, industrial liquids
  • BODY MATERIAL:
    Bronze
    Cast iron 0.6025 (GG25)
    Stainless steel 1.4308 (CF8)
    Ductile iron 0.7040 (GGG40)
    Stainless steel 1.4408 (CF8M)
    Carbon steel 1.0446/1.0619/1.0625 (A216 WCB)
  • Standards

    Leak test:

    • EN 12266
    • ISO 5208

    Face-to-face length:

    • DIN 3202
    • BS 5156

    Flange connection:

    • EN 1092
    • DIN PN6/PN16
    • ASME B16.5

    Top flange:

    • ISO 5211
  • Type designation
    85
    1
    1
    2
    M
    • Type
      M - manul
      AD - air to close
      AD-V - air to close (with handwheel)
      AL-V - air to open
    • Material of diaphragm
      1 - NBR
      2 - EPDM
      3 - Natural rubber
      4 - Viton
      5 - Butyl
      6 - Silicone
      7 - Neoprene
      8 - Hypalon
      9 - PTFE
    • Control variant
      1 - manual lever
      2 - hand wheel
      3 - worm gearbox
      4 - pneumatic drive
      5 - electric drive
    • Body material
      0 - Bronze
      1 - Cast iron 0.6025 (GG25)
      2 - Stainless steel 1.4308 (CF8)
      3 - Ductile iron 0.7040 (GGG40)
      4 - Stainless steel 1.4408 (CF8M)
      5 - Carbon steel 1.0446/1.0619/1.0625 (A216 WCB)
    • Series designation
      Series 85
  • Material specification
    Item Name Material
    1 Body Bronze
    Cast iron 0.6025 (GG25)
    Stainless steel 1.4308 (CF8)
    Ductile iron 0.7040 (GGG40)
    Stainless steel 1.4408 (CF8M)
    Carbon steel 1.0446, 1.0619, 1.0625 (A216 WCB)
    2 Diaphragm NBR
    EPDM
    Natural rubber
    Viton
    Butyl
    Silicone
    Neopren
    Hypalon
    PTFE
    3 Bonnet Cast iron 0.6025 (GG25)
    4 Studs Steel
    5 Nut, Washer Steel
    6 Compressor Cast iron 0.6025 (GG25)
    7 Nut Steinless steel
    8 Pin Steinless steel
    9 Stem nut Steinless steel
    10 Stem Steinless steel
    11 Bushing PTFE
    12 Ring Steinless steel 303
    13 Greasing Standard
    14 Handwheel Cast iron 0.6025 (GG25)
    15 Nut indicator Steel
    16 Indicator Steel
     Other material execution upon request.
  • Basic dimensions
      Ø D A
    DN PN 10/16 ANSI 125/150 DIN 3202 BS 5158
    15 95 89 130 108
    20 105 99 150 117
    25 115 108 160 127
    32 140 118 180 146
    40 150 127 200 159
    50 165 153 230 190
    65 185 178 290 216
    80 200 190 310 254
    100 220 228 350 305
    125 250 254 400 356
    150 285 280 480 406
    200 340 343 600 521
    250 395 406 650 635
    300 445 483 735/750/850 749

    Dimensions mentioned in mm.

  • Control options

    Hand wheel

    For manual operation, the handwheel is offered in cast iron material which allows for very comfortable and easy operation.

    Pneumatic drive

    The following actuators are available: double-acting actuator (air opening/closing), spring to close (to ensure closing in case of air failure), spring to open (to ensure opening in case of air failure).

    Electric drive

    Series 97 are designed as quarter-turn. These actuators can be installed on ABO butterfly valves in 24V, 230V and 400V versions from world leading suppliers such as Auma, Regada and Valpes.
